Kennametal

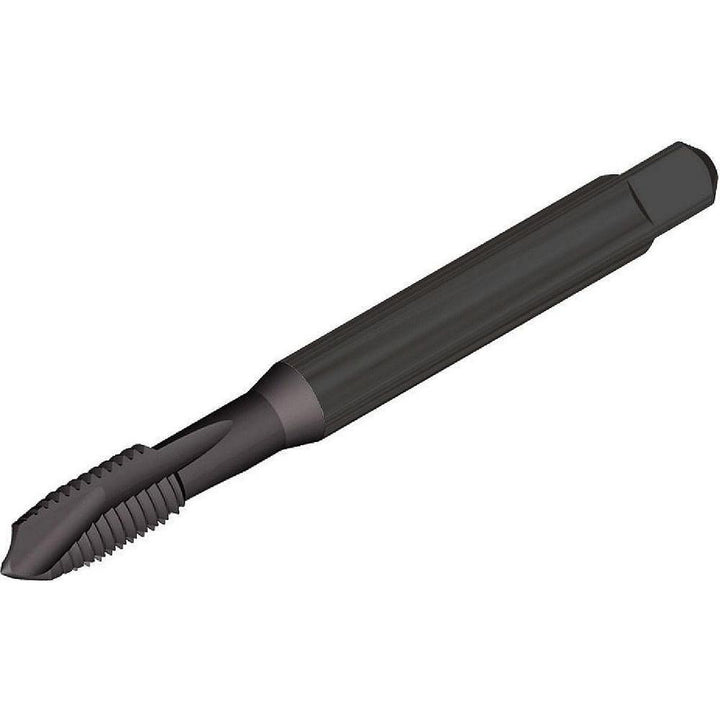

3/4-10 UNC HSS-E Spiral Point Tap, Oxide - Kennametal 5479718
MFR# 5479718Series T820
$197.25List $252.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-10
CoatingOxide
Description
The Kennametal 5479718 is a 3/4-10 UNC HSS-E Spiral Point tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishOxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeKSP39
Measurement typeDecimal Inch
Neck length in1-11/32
Number of flutes3
Overall length5.5100
OversizeNo
Shank diameter0.6299
Square size (mm)12.00
StyleSpiral Point
Threads per inch10
Thread directionRight Hand
Thread length1.1800
Thread pitch0.1
Thread size in3/4-10
Thread standardUNC
