Kennametal

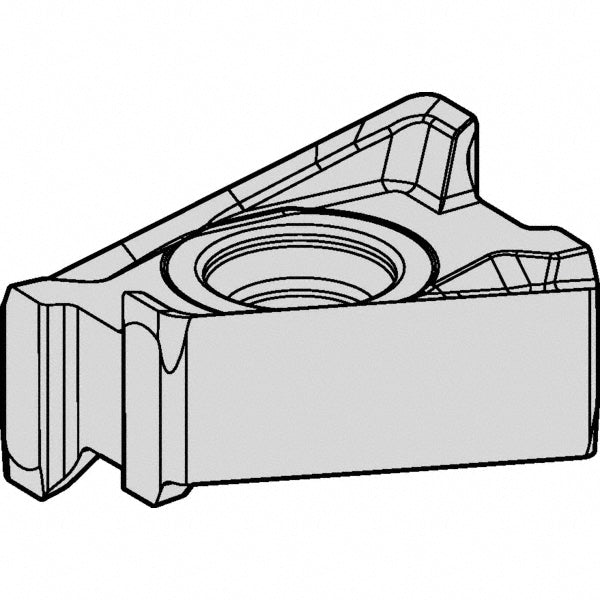

LNGU15T604SRGE Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 5516077
MFR# 5516077ISO/ANSI# LNGU15T604SRGECat# LNGU15T604SRGESeries LNGU
$41.82List $51.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5516077 is a LNGU15T604SRGE solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeLNGU541SRGE
Chip breakerGE
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code541
Insert styleLNGU
Iso codeLNGU15T604SRGE
Length0.6690
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T604SRGE
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3937
