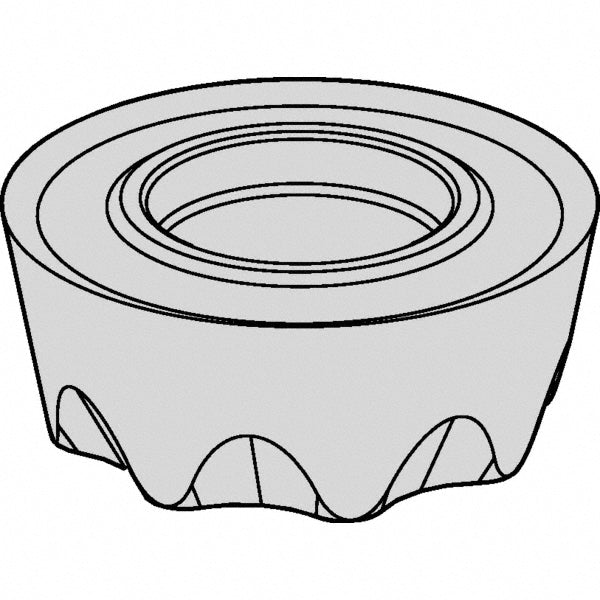

RPET1204M0SGEJ Solid Carbide Insert, Grade KCSM30, TiAlN - Kennametal 5517761

Kennametal

RPET1204M0SGEJ Solid Carbide Insert, Grade KCSM30, TiAlN - Kennametal 5517761

MFR# 5517761ISO/ANSI# RPET1204M0SGEJCat# RPET1204M0SGEJSeries RPET

$35.49List $43.32 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeKCSM30
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5517761 is a RPET1204M0SGEJ solid carbide indexable insert, grade KCSM30, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium, hard material.

Specifications

Ansi codeRPET1204M0SGEJ
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityKSRM
Cutting edge styleHoned T-Land
Included angle degree360
Inscribed circle0.4720
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPET
Iso codeRPET1204M0SGEJ
Length0.4720
Length range0.4500 to 0.5000
Manufacturers catalog numberRPET1204M0SGEJ
Manufacturer gradeKCSM30
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4720
