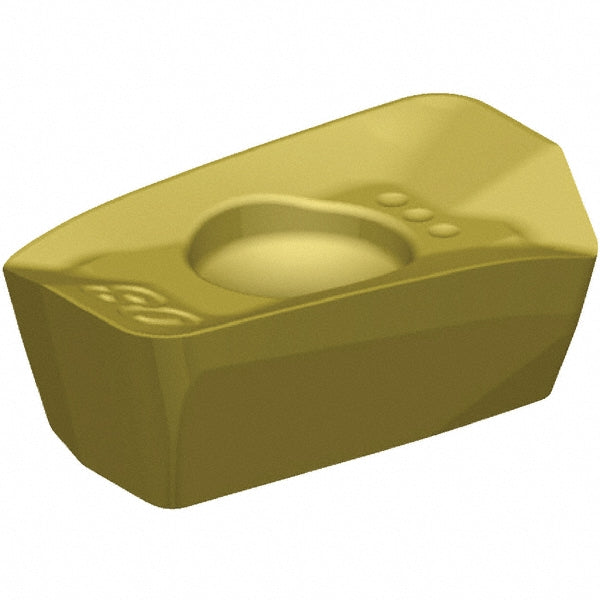

EDPT070308PDSRGE Solid Carbide Insert, Grade KCSM30, TiAlN - Kennametal 5519287
MFR# 5519287ISO/ANSI# EDPT070308PDSRGECat# EDPT070308PDSRGESeries EDPT
$24.44List $29.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCSM30
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5519287 is a EDPT070308PDSRGE solid carbide indexable insert, grade KCSM30, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium, hard material.
Specifications
Ansi codeEP0708SGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-7
Cutting edge styleChamfered; Honed
Hole diameter0.0866
Included angle degree70
Inscribed circle0.1850
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code0708
Insert styleEDPT
Iso codeEDPT070308PDSRGE
Length0.3220
Length range0.3200 to 0.4000
Manufacturers catalog numberEDPT070308PDSRGE
Manufacturer gradeKCSM30
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
Rake angle23
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1102
Thickness range0.1000 to 0.1250
Width0.1850
