Kennametal

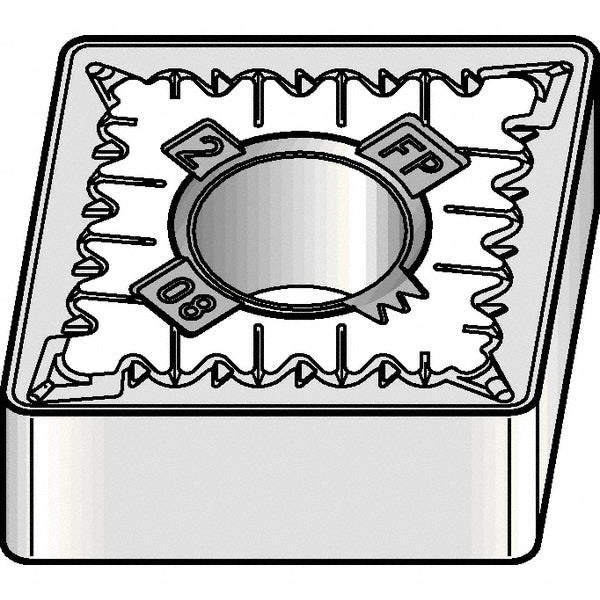

CNMG120408FP Carbide Insert, Grade KCP10B, TiCN - Kennametal 5531891
MFR# 5531891ISO/ANSI# CNMG432FPSeries KENLOC
$25.38List $30.98
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5531891 is a CNMG120408FP carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMG432FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408FP
Length range0.5000 - 0.6000
Manufacturers catalog number5531891
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
