Kennametal

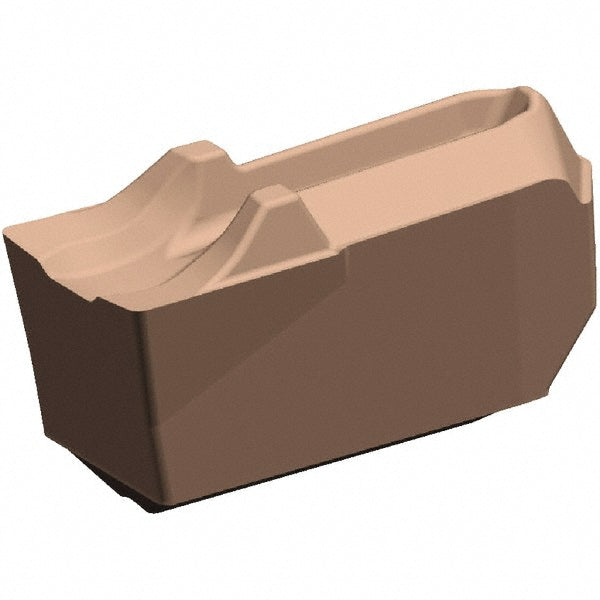

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5533082
MFR# 5533082Series Beyond Evolution
$20.29List $24.77
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5533082 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
ChipbreakerCF
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting tool applicationCut-off
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert seat size2
Insert size code2
Insert styleEC-U
Insert width0.0630
Lead angle0
Lead angle directionNeutral
Manufacturer gradeKCU25
Material gradeC2; C6
Multi use toolNo
Overall length0.3530
Overall width0.0787
Relief angle2.00
Single or double endSingle
