Kennametal

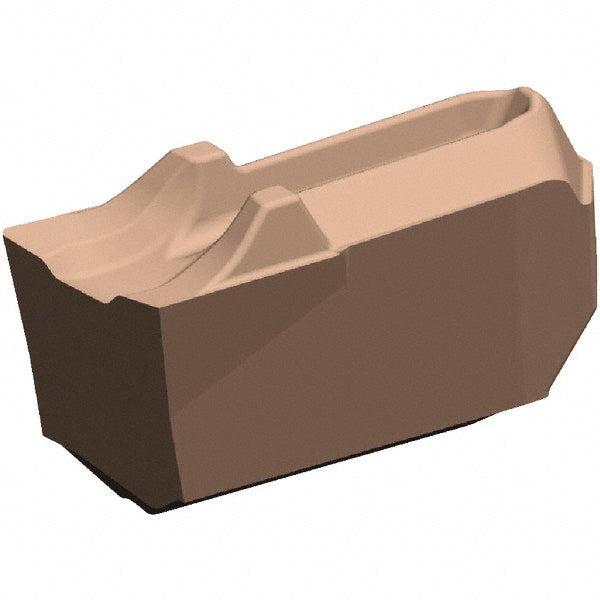

Carbide Insert, Grade KCU25, TiOCN - Kennametal 5533517
MFR# 5533517Series Beyond Evolution
$19.24List $23.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingTiOCN
Description
The Kennametal 5533517 is a carbide indexable insert, grade KCU25, TiOCN coated.
Specifications
ChipbreakerCF
Coating finishTiOCN
Coating processCVD
Corner radius0.0060
Cutting tool applicationCut-off
Cutting width0.0550
Full radiusNo
Insert handRight Hand
Insert materialCarbide
Insert seat size1B
Insert size code1B
Insert styleEC-U
Insert width0.0450
Lead angle0
Lead angle directionNeutral
Manufacturer gradeKCU25
Material gradeC2; C6
Multi use toolNo
Overall length0.3550
Overall width0.0550
Relief angle2.00
Single or double endSingle
