Kennametal
0.2500" IC Solid Carbide Insert, Grade KCU40, TiN - Kennametal 5534148
MFR# 5534148
$21.99List $26.84
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialSolid Carbide
CoatingTiN
Description

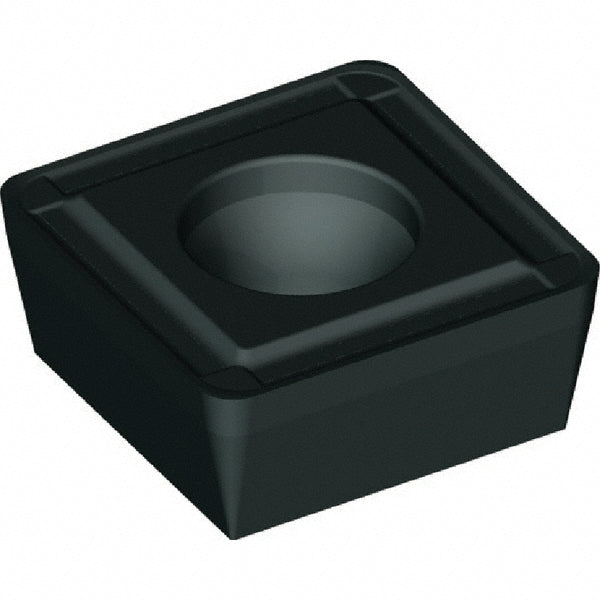

The Kennametal 5534148 is a solid carbide indexable insert, grade KCU40, TiN coated.
Specifications
ChipbreakerRHP
Coating finishTiN
Coating processPVD
Corner radius0.0157
Cutting directionRight Hand
Hole diameter0.1043
Inscribed circle0.2500
Insert materialSolid Carbide
Insert size060304
Insert styleSPGX
Manufacturer gradeKCU40
Relief angle11
ShapeSquare
Thickness0.1252
