Kennametal

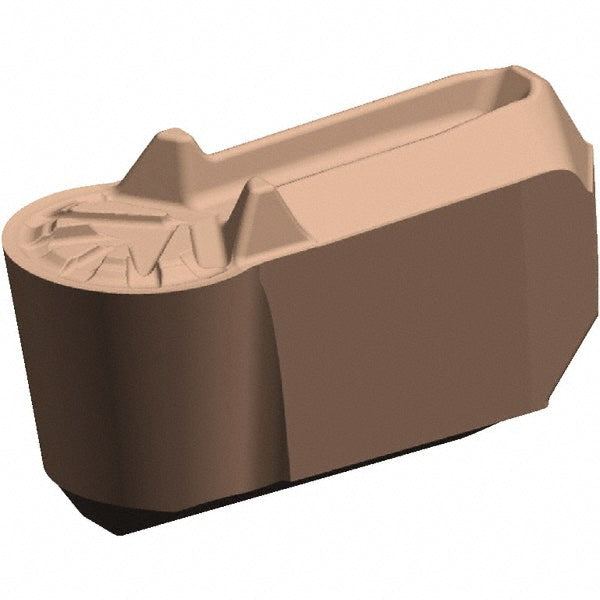

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5534278
MFR# 5534278Series Beyond Evolution
$24.08List $29.40
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5534278 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.1010
Cutting height0.2020
Cutting width0.2020
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size5
Insert styleER-U
Insert thickness0.2020
Manufacturer gradeKCU25
Maximum depth of cut0.1260
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall length0.482
Overall width0.202
RakeNeutral
Rake angle0
