Kennametal

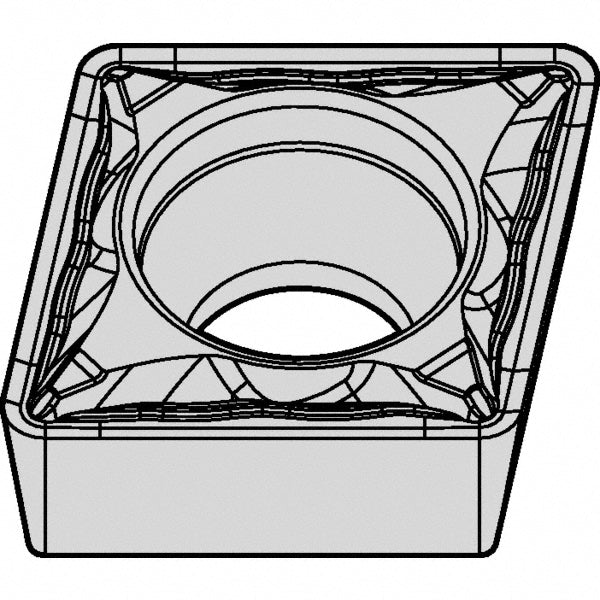

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KCP25B, TiCN - Kennametal 5537429
MFR# 5537429ISO/ANSI# CPMT060204Series Screw-On
$25.79List $31.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5537429 is a carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCPMT2151
Ansi size code2151
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCPMT2151FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCPMT
Insert thickness in3/32
Iso insert codeCPMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number5537429
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
