Kennametal

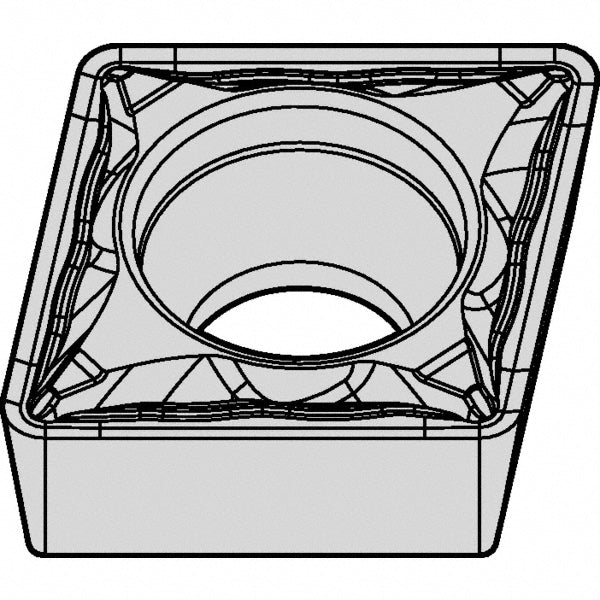

C - Diamond (Rhombic) 80-Deg 3/8" IC Carbide Insert, Grade KCP25B, TiCN - Kennametal 5537432
MFR# 5537432ISO/ANSI# CPMT09T304Series Screw-On
$29.66List $36.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5537432 is a carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCPMT3251
Ansi size code3251
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCPMT3251FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCPMT
Insert thickness in5/32
Iso insert codeCPMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number5537432
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
