Kennametal

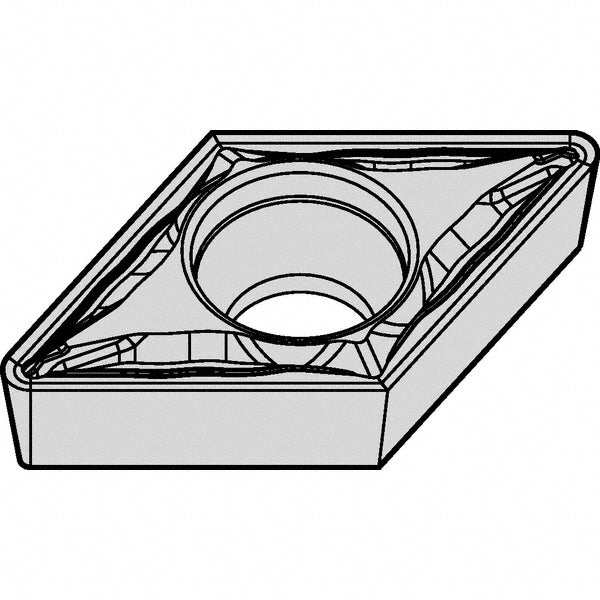

Diamond 3/8" IC Carbide Insert, Grade KCP25B, TiCN - Kennametal 5537443
MFR# 5537443ISO/ANSI# DCMT3251FPSeries Screw-On
$19.23List $23.48
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5537443 is a carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55
Industry standard numberDCMT3251FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Length range0.7000 - 10.0000
Manufacturers catalog number5537443
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
