Kennametal

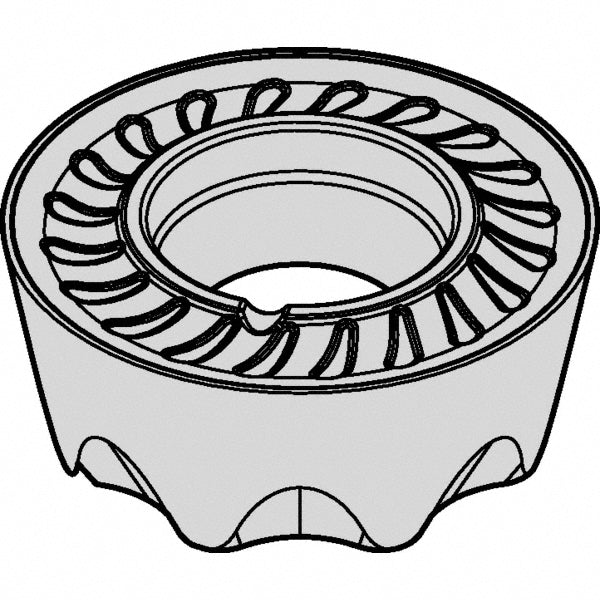

RPPT1204M0SGDX Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5542247
MFR# 5542247ISO/ANSI# RPPT1204M0SGDXCat# RPPT1204M0SGDXSeries RPPT
$24.07List $29.38
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5542247 is a RPPT1204M0SGDX solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRPPT1204M0SGDX
Chip breakerGDX
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityKSRM
Cutting edge styleChamfered; Honed
Hole diameter0.1732
Included angle degree360
Inscribed circle0.4720
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRPPT
Iso codeRPPT1204M0SGDX
Length0.4720
Length range0.4500 to 0.5000
Manufacturers catalog numberRPPT1204M0SGDX
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.4720
