Kennametal

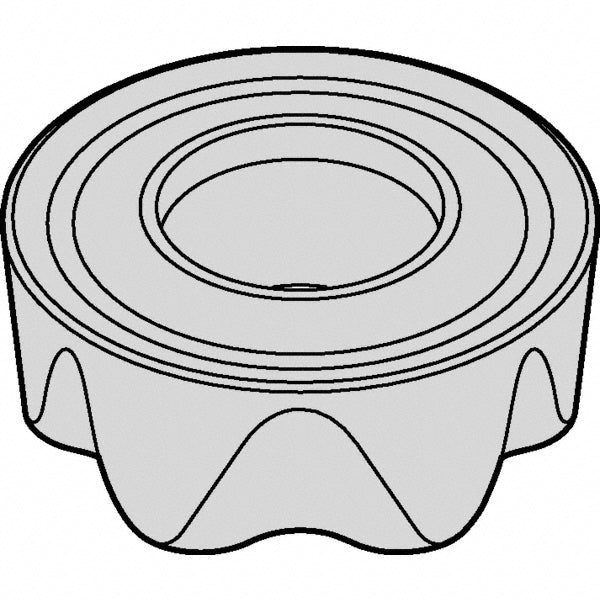

RCGT250900SHFJ Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5542249
MFR# 5542249ISO/ANSI# RCGT250900SHFJCat# RCGT250900SHFJSeries RCGT
$45.21List $55.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeRound
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5542249 is a RCGT250900SHFJ solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRCGT86SHFJ
Chip breakerHF
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityKSRM
Cutting edge styleChamfered; Honed
Hole diameter0.2559
Included angle degree360
Inscribed circle in1
Inscribed circle range1.0000+
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size8
Insert size code86
Insert styleRCGT
Iso codeRCGT250900SHFJ
Length in1
Length range1.0000+
Manufacturers catalog numberRCGT250900SHFJ
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle25
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/8
Thickness range0.3500 to 0.5000
Width in1
