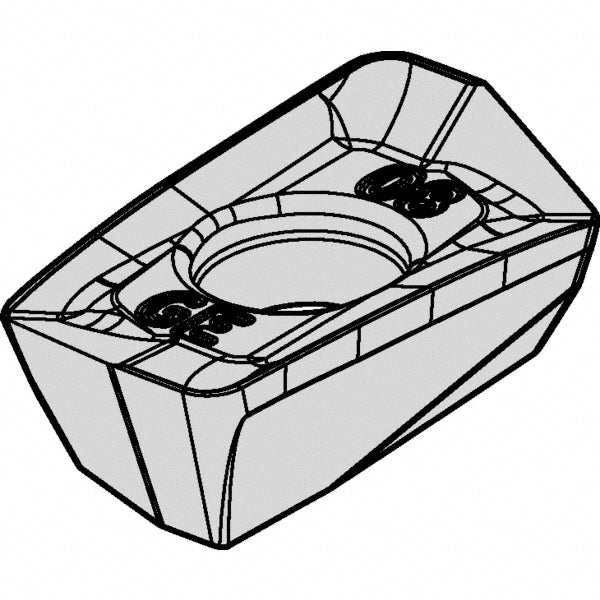

EDPT10T308PDERHD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545214

Kennametal

EDPT10T308PDERHD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545214

MFR# 5545214ISO/ANSI# EDPT10T308PDERHDCat# EDPT10T308PDERHDSeries EDPT

$25.75List $31.43 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5545214 is a EDPT10T308PDERHD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEP1008EHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDPT
Iso codeEDPT10T308PDERHD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T308PDERHD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2533
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle13
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2650
