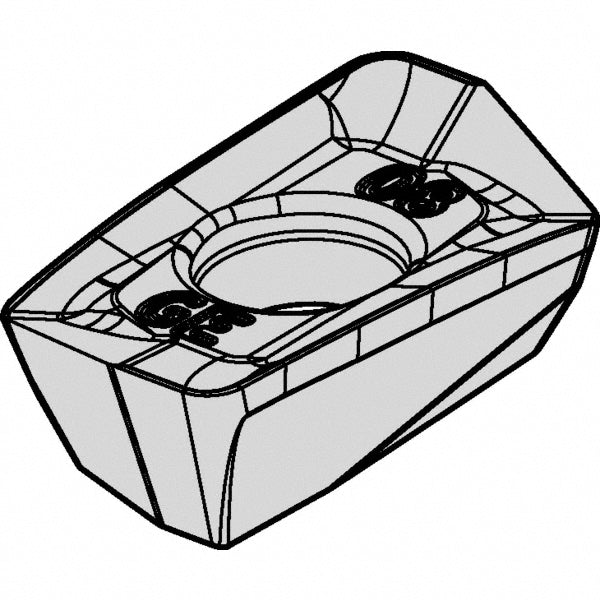

EDPT10T304PDERHD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545215

Kennametal

EDPT10T304PDERHD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545215

MFR# 5545215ISO/ANSI# EDPT10T304PDERHDCat# EDPT10T304PDERHDSeries EDPT

$25.75List $31.43 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5545215 is a EDPT10T304PDERHD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEP1004EHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Hole diameter0.1181
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T304
Insert styleEDPT
Iso codeEDPT10T304PDERHD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T304PDERHD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width in17/64
