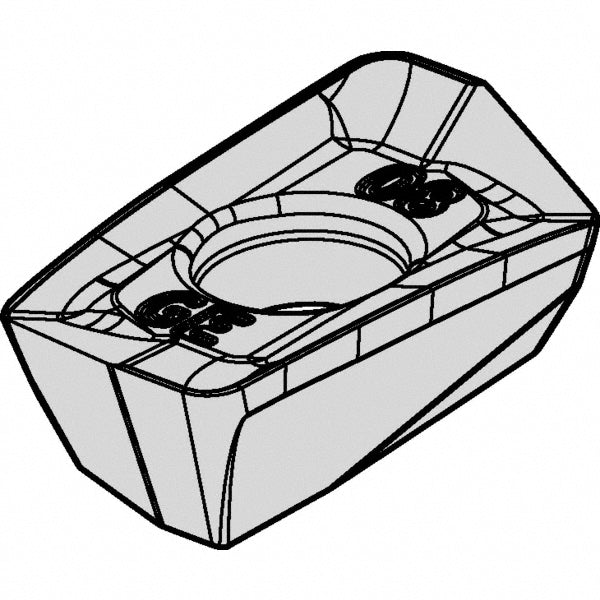

EDPT10T308PDSRGD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545216

Kennametal

EDPT10T308PDSRGD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545216

MFR# 5545216ISO/ANSI# EDPT10T308PDSRGDCat# EDPT10T308PDSRGDSeries EDPT

$26.24List $32.03 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5545216 is a EDPT10T308PDSRGD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEP1008SGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleChamfered; Honed
Hole diameter0.1181
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDPT
Iso codeEDPT10T308PDSRGD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T308PDSRGD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2650
