Kennametal

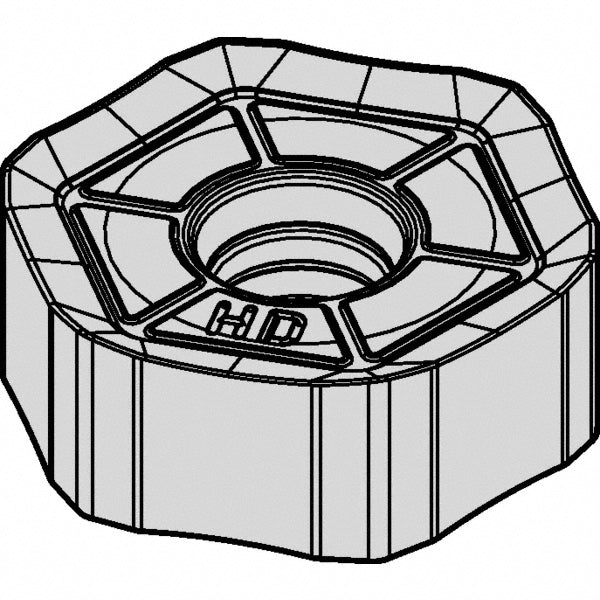

HNGJ0905ANSNHD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5550794
MFR# 5550794ISO/ANSI# HNGJ0905ANSNHDCat# HNGJ0905ANSNHDSeries HNGJ
$46.66List $56.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5550794 is a HNGJ0905ANSNHD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNGJ535ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityDodeka
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size5
Insert size code535
Insert styleHNGJ
Iso codeHNGJ0905ANSNHD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ0905ANSNHD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3379
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2150
Thickness range0.2000 to 0.2200
Width in5/8
