Kennametal

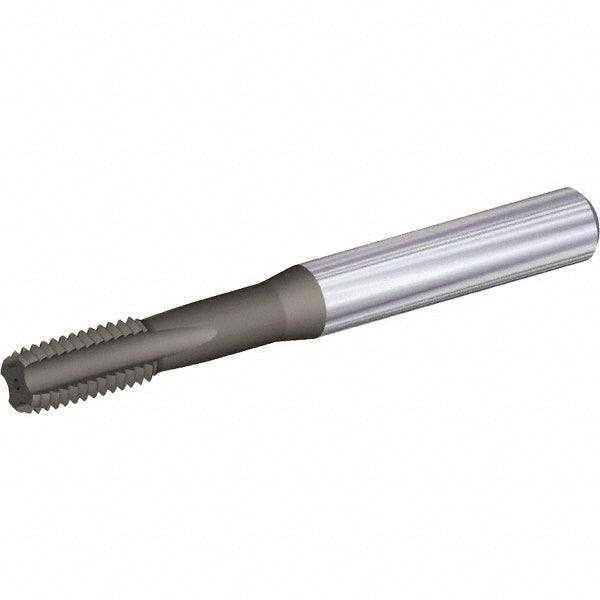

1/4-20 UNC Solid Carbide Standard Tap, AlCrTiN - Kennametal 5551056
MFR# 5551056Series T351
$250.96List $321.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-20
CoatingAlCrTiN
Description
The Kennametal 5551056 is a 1/4-20 UNC Solid Carbide Standard tap with a AlCrTiN finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit3BX
Coating finishAlCrTiN
Coolant throughYes
MaterialSolid Carbide
Material gradeKCK17
Neck length0.3600
Number of flutes4
Overall length2.7600
OversizeNo
Shank diameter0.2500
Shank length1.6300
Tapping depth (mm)24.00
Tap typeStandard
Thread directionRight Hand
Thread length0.5900
Thread size in1/4-20
Thread standardUNC
