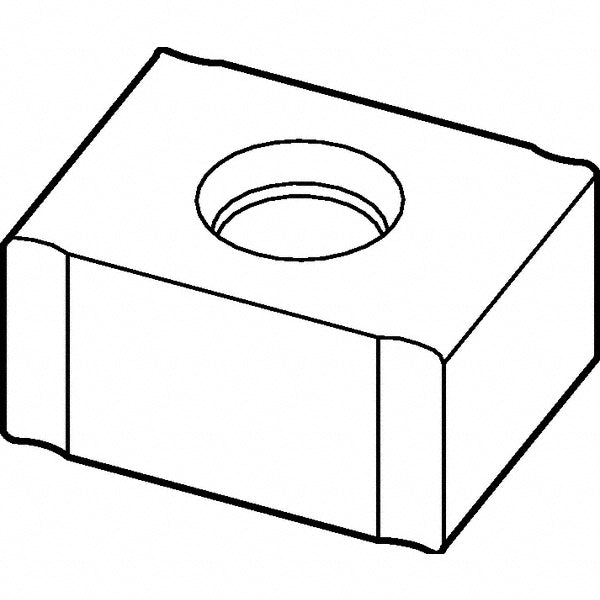

LNEU1245R04 Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5577078
MFR# 5577078ISO/ANSI# LNEU1245R04Cat# LNEU1245R04Series LNEU
$46.64List $56.93
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRectangle
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5577078 is a LNEU1245R04 solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNEU1245R04
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityLN
Cutting edge styleHoned
Hole diameter0.1669
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code1245
Insert styleLNEU
Iso codeLNEU1245R04
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNEU1245R04
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1770
Thickness range0.1750 to 0.1850
Width in3/8
