Kennametal

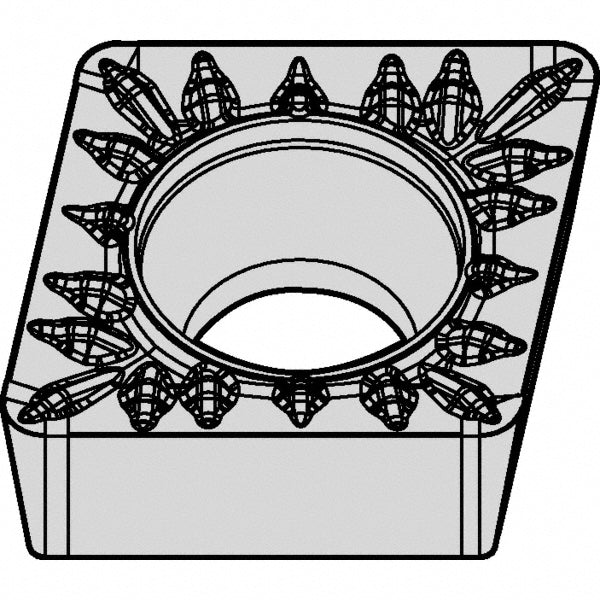

CCMT120408MP Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591777
MFR# 5591777ISO/ANSI# CCMT120408Series Screw-On
$33.29List $40.64
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCM25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5591777 is a CCMT120408MP carbide indexable insert, grade KCM25B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCCMT432
Ansi size code432
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle80
Industry standard numberCCMT432MP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408MP
Iso insert codeCCMT120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number5591777
Manufacturer gradeKCM25B
Material gradeC1; C2
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle12
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
