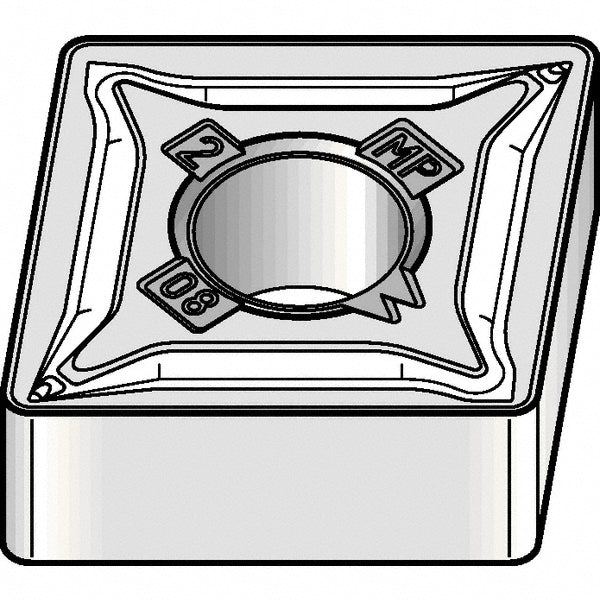

CNMG160612MP Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591780

Kennametal

CNMG160612MP Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591780

MFR# 5591780ISO/ANSI# CNMG160612Series KENLOC

$41.01List $50.05 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCM25B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5591780 is a CNMG160612MP carbide indexable insert, grade KCM25B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCNMG543
Ansi size code543
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543MP
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612MP
Iso insert codeCNMG160612
Iso size code160612
Length range0.6000 - 0.6500
Manufacturers catalog number5591780
Manufacturer gradeKCM25B
Material gradeC1; C2
Maximum depth of cut0.2113
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
