Kennametal

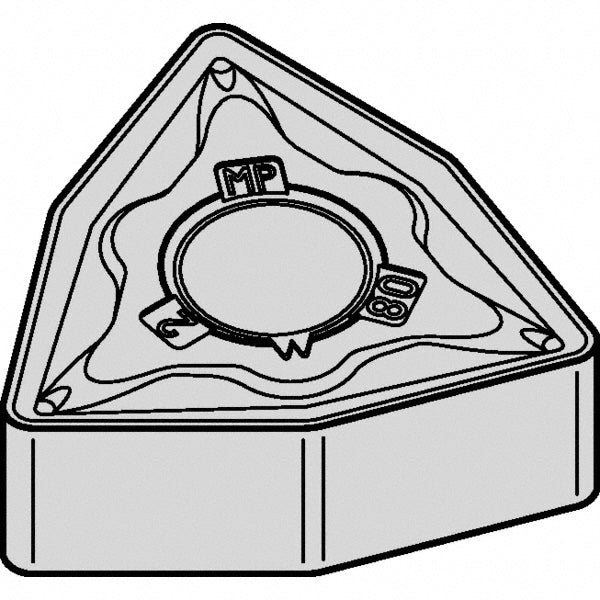

WNMG060408MP Carbide Insert, Grade KCM25B, TiCN - Kennametal 5591912
MFR# 5591912ISO/ANSI# WNMG060408Series KENLOC
$21.90List $26.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeKCM25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5591912 is a WNMG060408MP carbide indexable insert, grade KCM25B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWNMG332
Ansi size code332
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle80
Industry standard numberWNMG332MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5130
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408MP
Iso insert codeWNMG060408
Iso size code060408
Length range0.5000 - 0.6000
Manufacturers catalog number5591912
Manufacturer gradeKCM25B
Material gradeC1; C2
Maximum depth of cut0.1708
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5130
Wiper edgeNo
