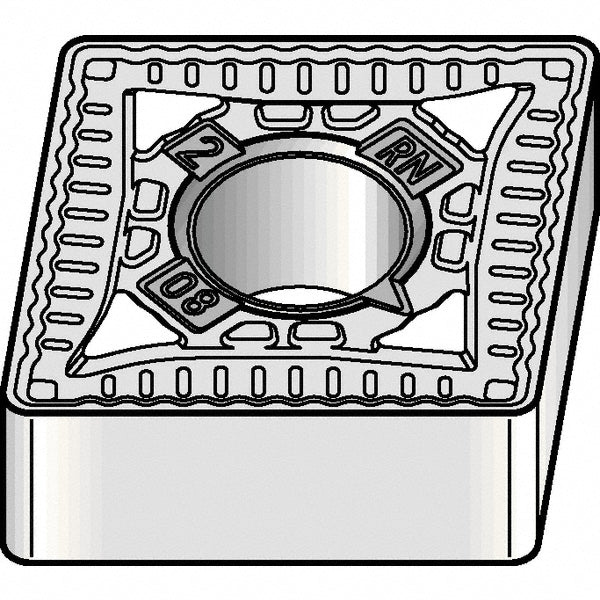

CNMG190612RN Carbide Insert, Grade KCP40B, TiN - Kennametal 5591973
MFR# 5591973ISO/ANSI# CNMG190612Series KENLOC
$52.17List $63.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP40B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5591973 is a CNMG190612RN carbide indexable insert, grade KCP40B, TiN coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeCNMG643
Ansi size code643
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.3125
Included angle80
Industry standard numberCNMG643RN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612RN
Iso insert codeCNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number5591973
Manufacturer gradeKCP40B
Material gradeC5; C6
Maximum depth of cut0.2536
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
