Kennametal

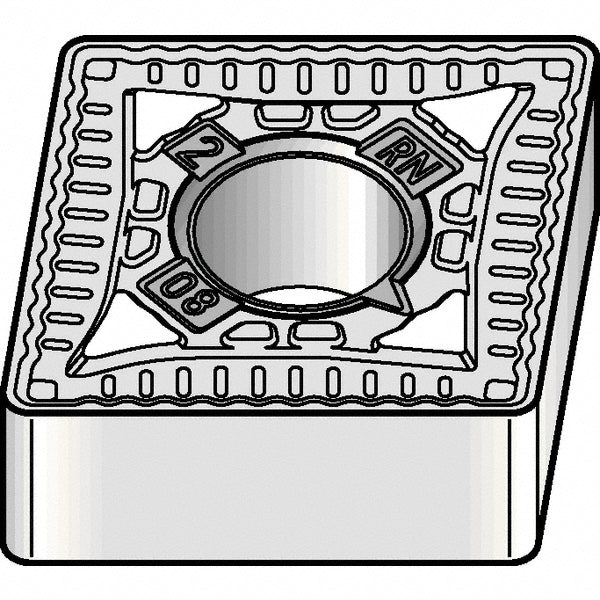

C - Diamond (Rhombic) 80-Deg 5/8" IC Carbide Insert, Grade KCP40B, TiN - Kennametal 5591983
MFR# 5591983ISO/ANSI# CNMG160612Series KENLOC
$41.01List $50.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP40B
MaterialCarbide
CoatingTiN
Description
The Kennametal 5591983 is a carbide indexable insert, grade KCP40B, TiN coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeCNMG543
Ansi size code543
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543RN
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso insert codeCNMG160612
Iso size code160612
Length range0.6000 - 0.6500
Manufacturers catalog number5591983
Manufacturer gradeKCP40B
Material gradeC5; C6
Maximum depth of cut0.2113
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
