Kennametal

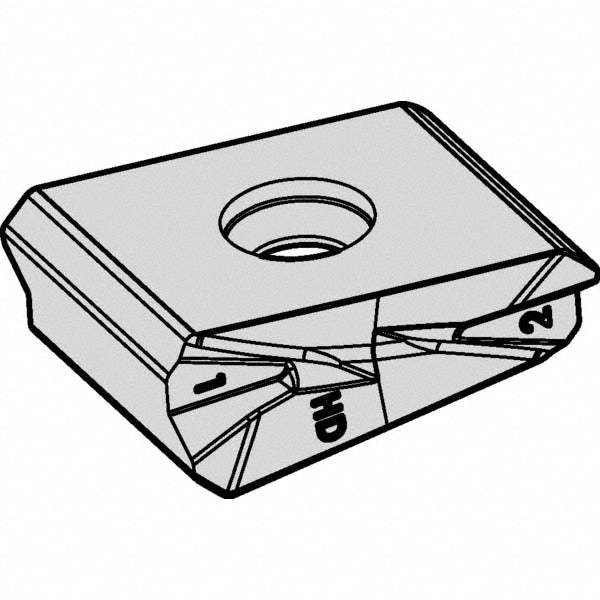

LNPU2410ANSRHD2 Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5620745
MFR# 5620745ISO/ANSI# LNPU2410ANSRHD2Cat# LNPU2410ANSRHD2Series LNPU
$60.33List $73.64
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5620745 is a LNPU2410ANSRHD2 solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNPU863ANSRHD2
Chip breakerHD2
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityMEGA45
Cutting edge styleChamfered; Honed
Hole diameter0.2756
Included angle degree90
Inscribed circle0.9860
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size8
Insert size code863
Insert styleLNPU
Iso codeLNPU2410ANSRHD2
Length1.1420
Length range1.0000+
Manufacturers catalog numberLNPU2410ANSRHD2
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.3940
Thickness range0.3500 to 0.5000
Width0.9860
