Kennametal

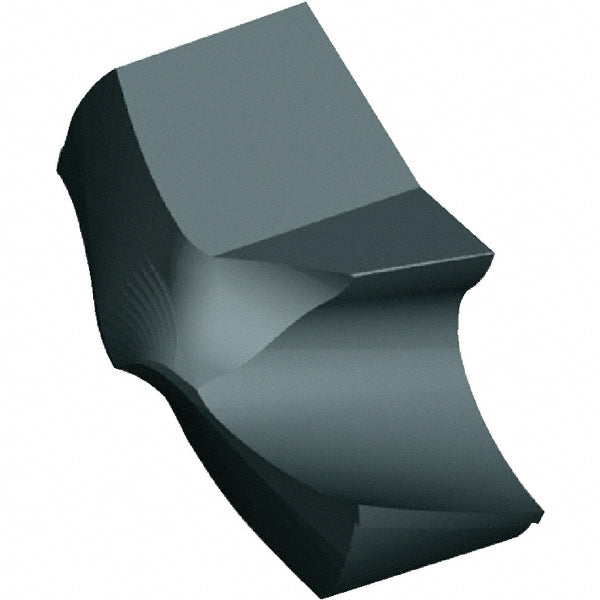

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5626734
MFR# 5626734Series KSEM
$238.00List $290.51
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN
Description
The Kennametal 5626734 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in1-3/32
DrillingStackedPlates
Drill point angle140
Flute length (mm)14.00
Flute typeHelical
Functional length0.5470
Height in35/64
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size6
Iso numberKSEM1094HPG
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.5470
Point typeStandard
Primary workpiece materialSteel; Stainless Steel
Spiral typeRegular Spiral
StyleKSEM
ThroughcoolantMQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
