Kennametal

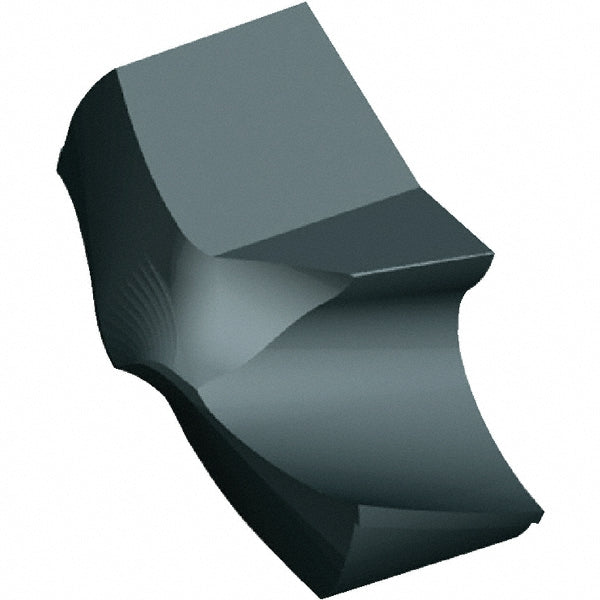

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5626761
MFR# 5626761Series KSEM
$299.28List $365.31
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN
Description
The Kennametal 5626761 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in1-3/8
DrillingStackedPlates
Drill point angle140
Flute length (mm)17.00
Flute typeHelical
Functional length0.6875
Height in11/16
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size9
Iso numberKSEM1375HPG
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.6875
Point typeStandard
Primary workpiece materialSteel; Stainless Steel
Spiral typeRegular Spiral
StyleKSEM
ThroughcoolantMQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
