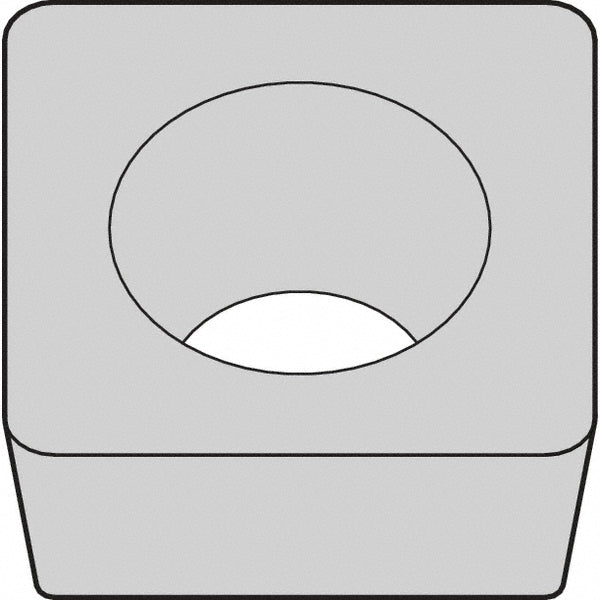

SCMW120412 Carbide Insert, Grade KCK20B, TiCN - Kennametal 5639709

Kennametal

SCMW120412 Carbide Insert, Grade KCK20B, TiCN - Kennametal 5639709

MFR# 5639709ISO/ANSI# SCMW120412Series Screw-On

$27.10List $33.08 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKCK20B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5639709 is a SCMW120412 carbide indexable insert, grade KCK20B, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi insert codeSCMW433
Ansi size code433
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle90
Industry standard numberSCMW433
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code433
Insert styleSCMW
Insert thickness in3/16
Iso codeSCMW120412
Iso insert codeSCMW120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturers catalog number5639709
Manufacturer gradeKCK20B
Material gradeC2; C3
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
