Kennametal

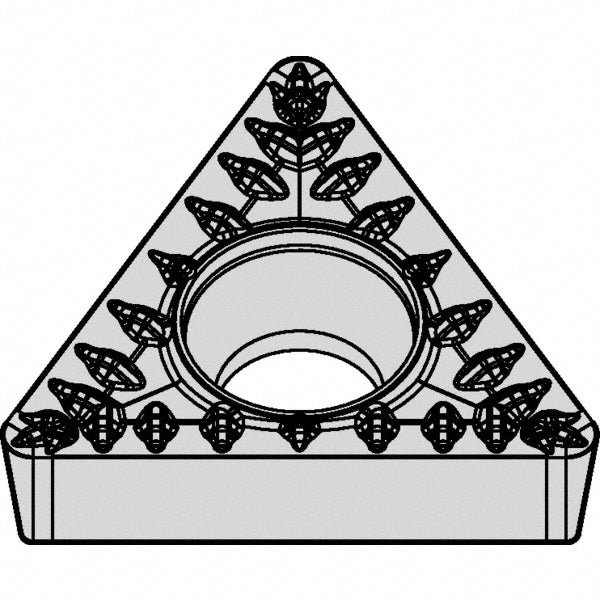

TCMT16T308MP Carbide Insert, Grade KCK20B, TiCN - Kennametal 5639792
MFR# 5639792ISO/ANSI# TCMT16T308Series Screw-On
$34.08List $41.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKCK20B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5639792 is a TCMT16T308MP carbide indexable insert, grade KCK20B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTCMT3252
Ansi size code3252
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle60
Industry standard numberTCMT3252MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3252
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308MP
Iso insert codeTCMT16T308
Iso size code16T308
Length range0.6000 - 0.6500
Manufacturers catalog number5639792
Manufacturer gradeKCK20B
Material gradeC2; C3
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle12
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
