Kennametal

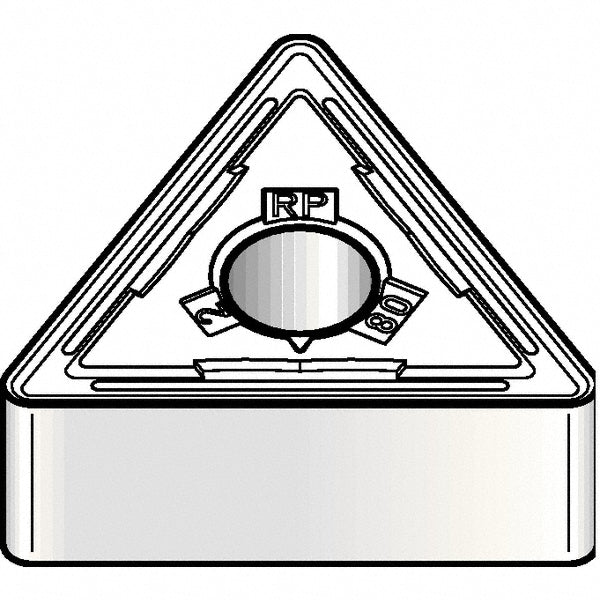

TNMG220408RP Carbide Insert, Grade KCK20B, TiCN - Kennametal 5639826
MFR# 5639826ISO/ANSI# TNMG220408Series KENLOC
$22.49List $27.45
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCK20B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5639826 is a TNMG220408RP carbide indexable insert, grade KCK20B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeTNMG432
Ansi size code432
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle60
Industry standard numberTNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408RP
Iso insert codeTNMG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number5639826
Manufacturer gradeKCK20B
Material gradeC2; C3
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
