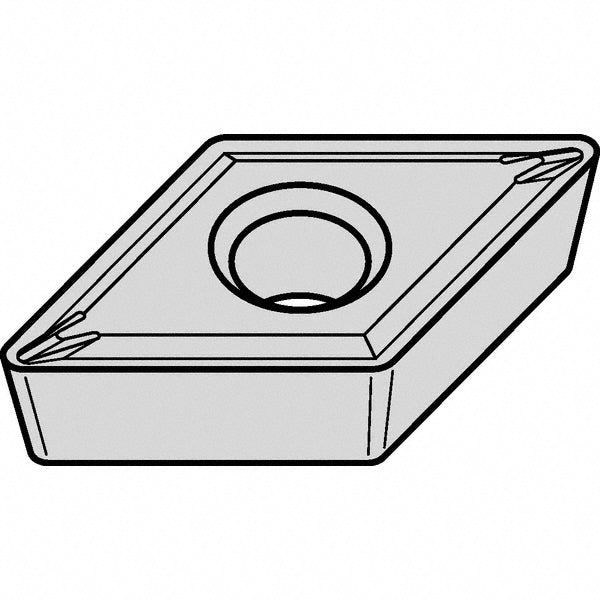

DCMT11T308LF Carbide Insert, Grade KCM15B, TiCN - Kennametal 5640485

Kennametal

DCMT11T308LF Carbide Insert, Grade KCM15B, TiCN - Kennametal 5640485

MFR# 5640485ISO/ANSI# DCMT3252LFSeries Screw-On

$23.56List $28.76 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeKCM15B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5640485 is a DCMT11T308LF carbide indexable insert, grade KCM15B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3252
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308LF
Length range0.7000 - 10.0000
Manufacturers catalog number5640485
Manufacturer gradeKCM15B
Material gradeC2; C3
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
