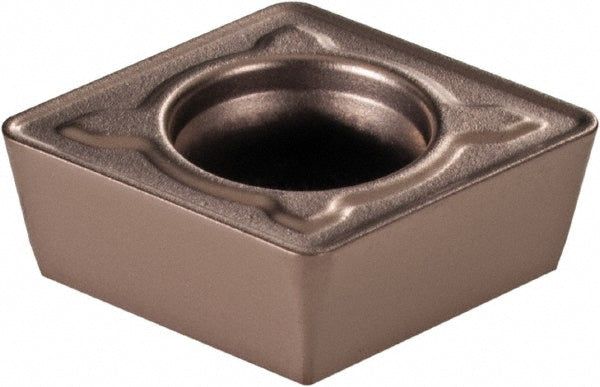

CPMT32.52 Carbide Insert, Grade KCM15B, TiCN - Kennametal 5641091

Kennametal

CPMT32.52 Carbide Insert, Grade KCM15B, TiCN - Kennametal 5641091

MFR# 5641091ISO/ANSI# CPMT09T308Series Screw-On

$29.66List $36.21 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCM15B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5641091 is a CPMT32.52 carbide indexable insert, grade KCM15B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCPMT3252
Ansi size code3252
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCPMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3252
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT32.52
Iso insert codeCPMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number5641091
Manufacturer gradeKCM15B
Material gradeC2; C3
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
