Kennametal

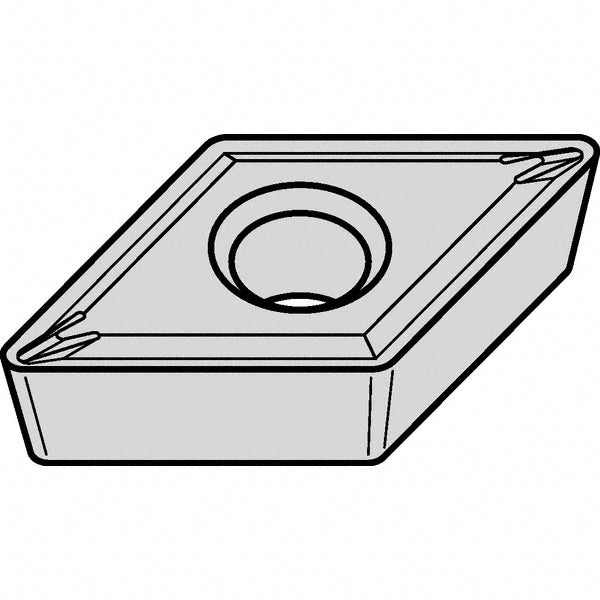

DCMT070204LF Carbide Insert, Grade KCM15B, TiCN - Kennametal 5641093
MFR# 5641093ISO/ANSI# DCMT070204Series Screw-On
$25.80List $31.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCM15B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5641093 is a DCMT070204LF carbide indexable insert, grade KCM15B, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDCMT2151
Ansi size code2151
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle55
Industry standard numberDCMT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code2151
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204LF
Iso insert codeDCMT070204
Iso size code070204
Length range0.6000 - 0.6500
Manufacturers catalog number5641093
Manufacturer gradeKCM15B
Material gradeC2; C3
Maximum depth of cut0.2033
Maximum depth of cut frac in13/64
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
