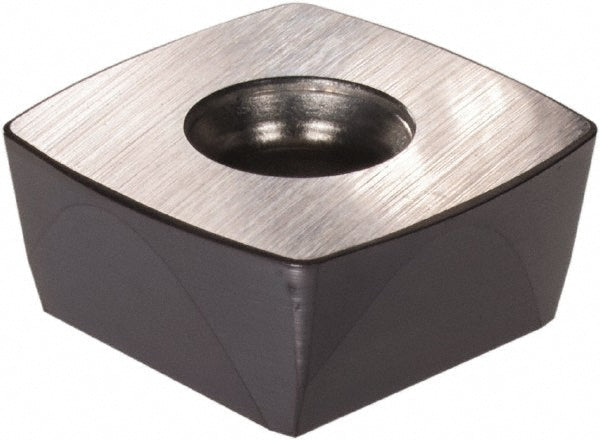

XDLW120508SRD Solid Carbide Insert, Grade X400, TiAlN - Kennametal 5651223

Kennametal

XDLW120508SRD Solid Carbide Insert, Grade X400, TiAlN - Kennametal 5651223

MFR# 5651223ISO/ANSI# XDLW120508SRDCat# XDLW120508SRDSeries XDLW

$38.39List $46.85 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeX400
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5651223 is a XDLW120508SRD solid carbide indexable insert, grade X400, TiAlN coated. Suited for steel, hard material.

Specifications

Ansi codeXDLW120508SRD
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility7792VXD12
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120508
Insert styleXDLW
Iso codeXDLW120508SRD
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXDLW120508SRD
Manufacturer gradeX400
Material applicationSteel; Hard Material
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Hard Material
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
