Kennametal

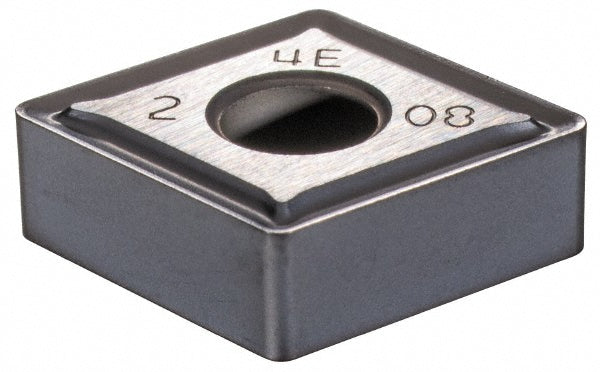

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade SP0819, TiAlN - Kennametal 5652137
MFR# 5652137ISO/ANSI# CNMG120408
$23.93List $29.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeSP0819
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 5652137 is a carbide indexable insert, grade SP0819, TiAlN coated.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breaker4E
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Industry standard numberVBMT222LF
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number5652137
Manufacturer gradeSP0819
Material gradeMicrograin
Relief angle0
Side clearanceNegative
Tolerance codeM
