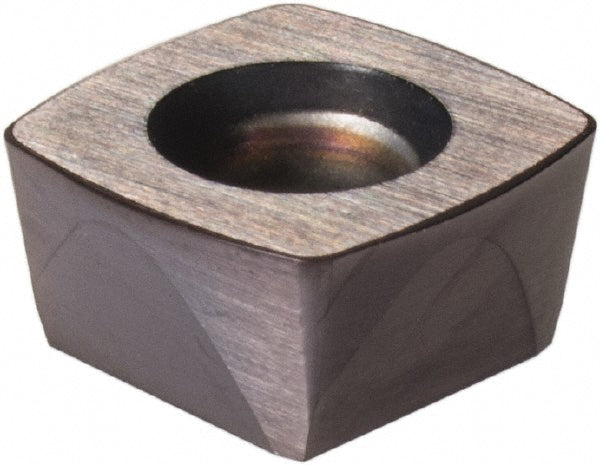

XDLW090408SRD Solid Carbide Insert, Grade X400, TiAlN - Kennametal 5652239

Kennametal

XDLW090408SRD Solid Carbide Insert, Grade X400, TiAlN - Kennametal 5652239

MFR# 5652239ISO/ANSI# XDLW090408SRDCat# XDLW090408SRDSeries XDLW

$36.80List $44.92 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeX400
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5652239 is a XDLW090408SRD solid carbide indexable insert, grade X400, TiAlN coated. Suited for steel, hard material.

Specifications

Ansi codeXDLW090408SRD
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility7792VXD09
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090408
Insert styleXDLW
Iso codeXDLW090408SRD
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXDLW090408SRD
Manufacturer gradeX400
Material applicationSteel; Hard Material
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Hard Material
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in3/8
