Kennametal

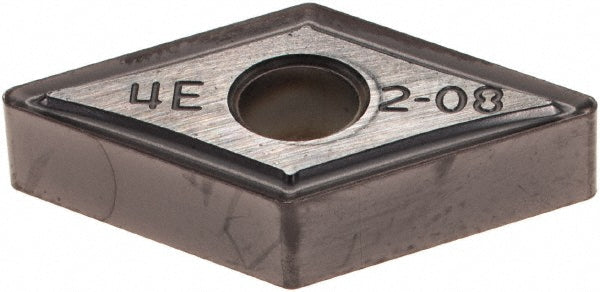

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade SP0819, TiAlN - Kennametal 5652883
MFR# 5652883ISO/ANSI# DNMG150408
$33.87List $41.34
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeSP0819
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 5652883 is a carbide indexable insert, grade SP0819, TiAlN coated.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breaker4E
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Industry standard numberDPMT3253MP
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso insert codeDNMG150408
Iso size code150408
Length range0.6000 - 0.6500
Manufacturers catalog number5652883
Manufacturer gradeSP0819
Material gradeMicrograin
Relief angle0
Side clearanceNegative
Tolerance codeM
