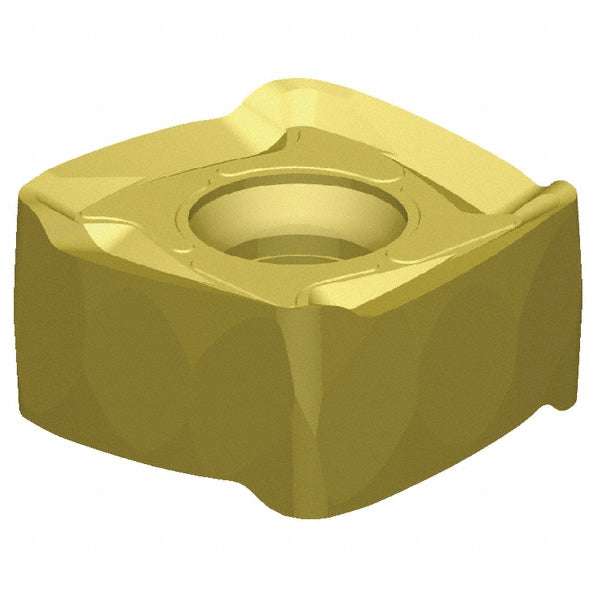

XOGU120512ERGU52 Solid Carbide Insert, Grade X500, TiN - Kennametal 5654090
MFR# 5654090ISO/ANSI# XOGU120512ERGU52Cat# XOGU120512ERGU52Series XOGU
$54.58List $66.62
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeX500
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5654090 is a XOGU120512ERGU52 solid carbide indexable insert, grade X500, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXOGU120512ERGU52
Chip breakerGU52
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutter series compatibility7793VXO12
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120512
Insert styleXOGU
Iso codeXOGU120512ERGU52
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXOGU120512ERGU52
Manufacturer gradeX500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2210
Thickness range0.2200 to 0.2350
Width in1/2
