Kennametal

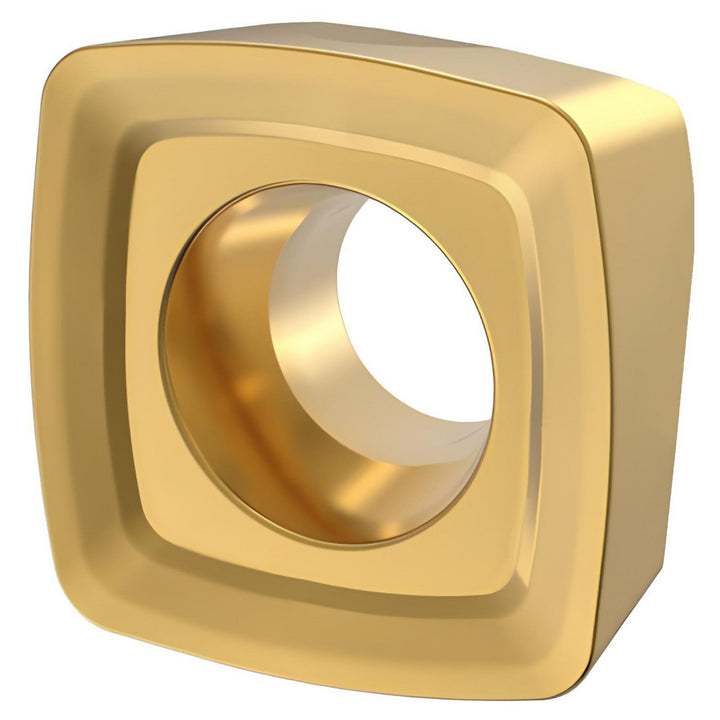

XPLT060308ERD41 Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5654267
MFR# 5654267ISO/ANSI# XPLT060308ERD41Cat# XPLT060308ERD41Series XPLT
$24.50List $29.90
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeSP6519
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5654267 is a XPLT060308ERD41 solid carbide indexable insert, grade SP6519, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXPLT060308ERD41
Chip breaker41
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility7792VXP06
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2760
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060308
Insert styleXPLT
Iso codeXPLT060308ERD41
Length0.2760
Length range0.0000 to 0.3200
Manufacturers catalog numberXPLT060308ERD41
Manufacturer gradeSP6519
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.2760
