Kennametal

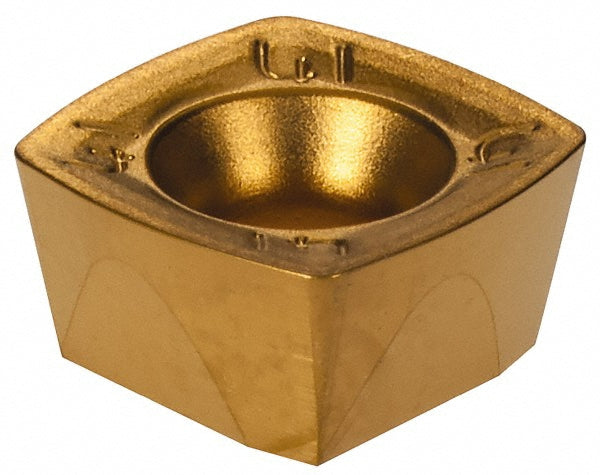

XDLT090408ERD41 Solid Carbide Insert, Grade X500, TiN - Kennametal 5654896
MFR# 5654896ISO/ANSI# XDLT090408ERD41Cat# XDLT090408ERD41Series XDLT
$36.75List $44.85
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeX500
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5654896 is a XDLT090408ERD41 solid carbide indexable insert, grade X500, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXDLT090408ERD41
Chip breakerD41
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility7792VXD09
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090408
Insert styleXDLT
Iso codeXDLT090408ERD41
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXDLT090408ERD41
Manufacturer gradeX500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3379
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in3/8
