Kennametal

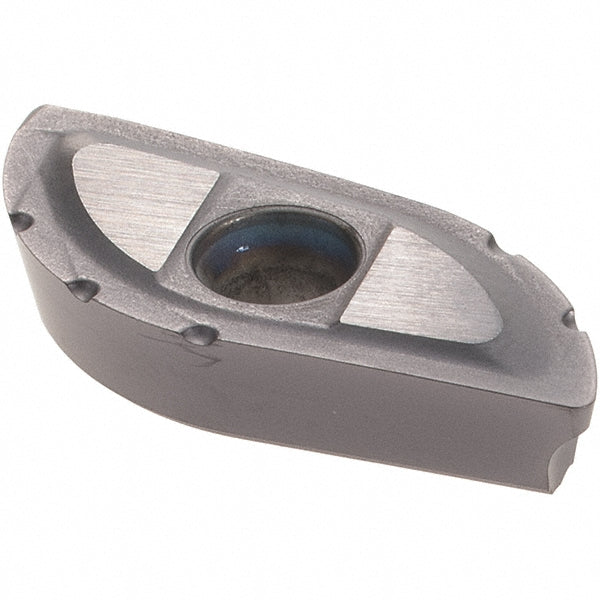

XPNT06062515RF Solid Carbide Insert, Grade SP6519, TiAlN - Kennametal 5655171
MFR# 5655171ISO/ANSI# XPNT06062515RFCat# XPNT06062515RFSeries XPNT
$50.56List $61.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
GradeSP6519
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5655171 is a XPNT06062515RF solid carbide indexable insert, grade SP6519, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXPNT06062515RF
Chip breakerF
Coating finishTiAlN
Coating processPVD
Cutter series compatibility5505VX
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.3360
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size06
Insert size code060625
Insert styleXPNT
Iso codeXPNT06062515RF
Length0.7830
Length range0.7000 to 0.9000
Manufacturers catalog numberXPNT06062515RF
Manufacturer gradeSP6519
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.3765
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3360
