Kennametal

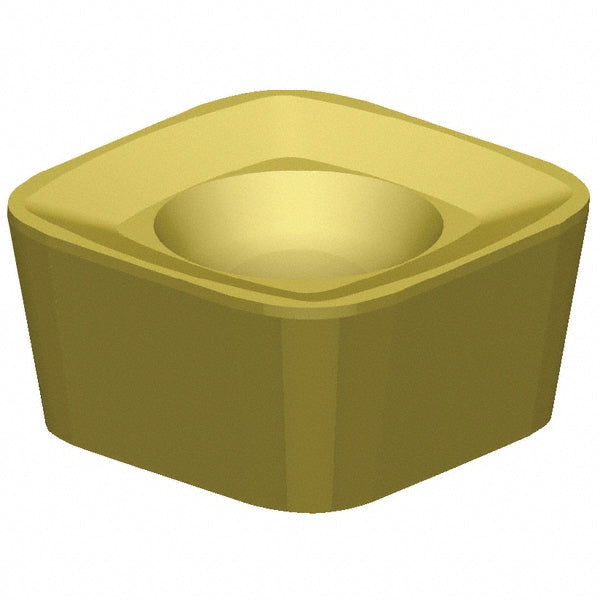

XDLT090408ERD721 Solid Carbide Insert, Grade GH2 - Kennametal 5655472
MFR# 5655472ISO/ANSI# XDLT090408ERD721Cat# XDLT090408ERD721Series XDLT
$23.70List $28.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeGH2
MaterialSolid Carbide
Description
The Kennametal 5655472 is a XDLT090408ERD721 solid carbide indexable insert, grade GH2. Suited for cast iron, non-ferrous metal, superalloys & titanium.
Specifications
Ansi codeXDLT090408ERD721
Chip breakerD721
Coating processUncoated
Corner radius in1/32
Cutter series compatibility7792VXD09
Cutting edge styleHoned
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090408
Insert styleXDLT
Iso codeXDLT090408ERD721
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberXDLT090408ERD721
Manufacturer gradeGH2
Material applicationCast Iron; Non-Ferrous Metal
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in3/8
