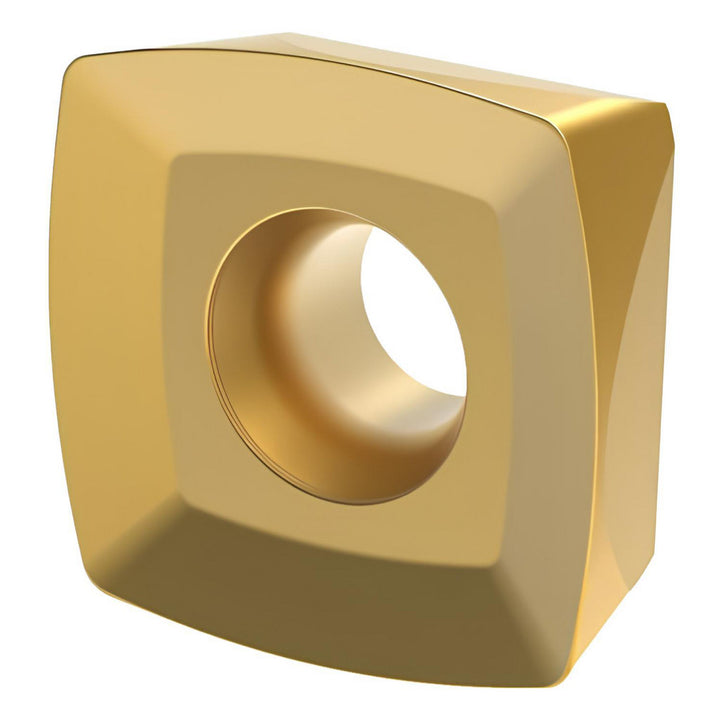

XDLT120508ERD721 Solid Carbide Insert, Grade GH2 - Kennametal 5656252
MFR# 5656252ISO/ANSI# XDLT120508ERD721Cat# XDLT120508ERD721Series XDLT
$27.58List $33.67
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeGH2
MaterialSolid Carbide
Description
The Kennametal 5656252 is a XDLT120508ERD721 solid carbide indexable insert, grade GH2. Suited for cast iron, non-ferrous metal, superalloys & titanium.
Specifications
Ansi codeXDLT120508ERD721
Chip breakerD721
Coating processUncoated
Corner radius in1/32
Cutter series compatibility7792VXD12
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120508
Insert styleXDLT
Iso codeXDLT120508ERD721
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXDLT120508ERD721
Manufacturer gradeGH2
Material applicationCast Iron; Non-Ferrous Metal
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
