Kennametal

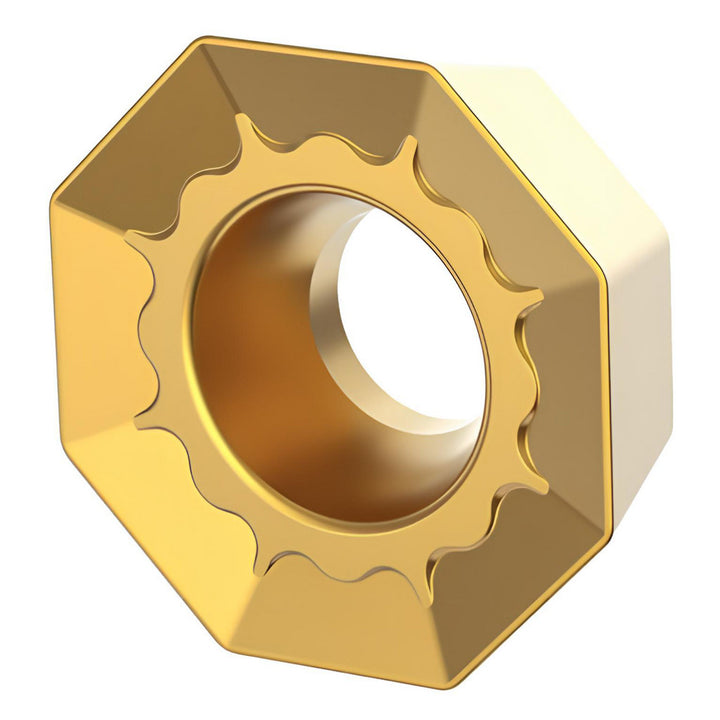

ODMT040408EN41 Solid Carbide Insert, Grade X500, TiN - Kennametal 5656811
MFR# 5656811ISO/ANSI# ODMT040408EN41Cat# ODMT040408EN41Series ODMT
$36.23List $44.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeX500
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5656811 is a ODMT040408EN41 solid carbide indexable insert, grade X500, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeODMT040408EN41
Chip breaker41
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility7745VOD04
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.5040
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size04
Insert size code040408
Insert styleODMT
Iso codeODMT040408EN41
Length0.5040
Length range0.5000 to 0.6000
Manufacturers catalog numberODMT040408EN41
Manufacturer gradeX500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C3; C6; C7
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.5040
