Kennametal

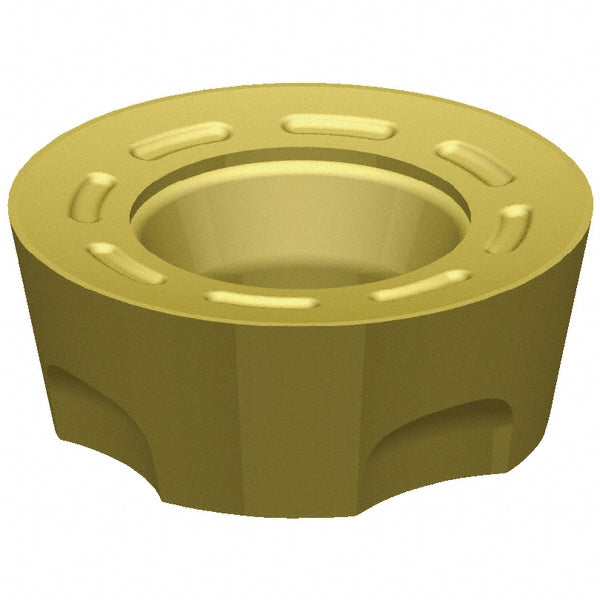

RPHT10T3M0E422X4 Solid Carbide Insert, Grade X500, TiN - Kennametal 5660462
MFR# 5660462ISO/ANSI# RPHT10T3M0E422X4Cat# RPHT10T3M0E422X4Series RPHT
$34.87List $42.56
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeX500
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5660462 is a RPHT10T3M0E422X4 solid carbide indexable insert, grade X500, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRPHT10T3M0E422X4
Chip breakerCommon
Coating finishTiN
Coating processCVD
Cutter series compatibility7713VR10
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code10T3
Insert styleRPHT
Iso codeRPHT10T3M0E422X4
Length0.3940
Length range0.3200 to 0.4000
Manufacturers catalog numberRPHT10T3M0E422X4
Manufacturer gradeX500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3940
