Kennametal

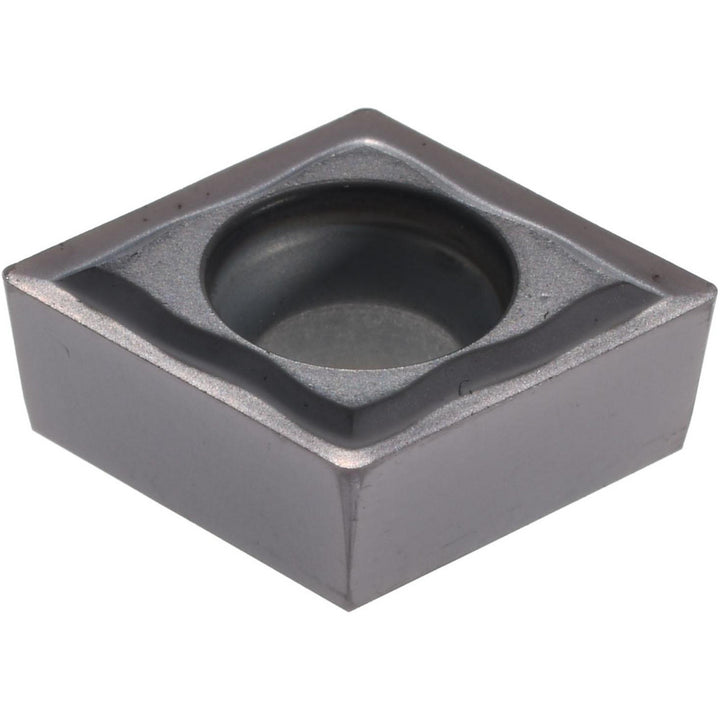

CPMT09T308MF Carbide Insert, Grade SP4036, TiAlN - Kennametal 5666382
MFR# 5666382ISO/ANSI# CCGT09T304Series CCGT
$30.85List $37.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeSP4036
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 5666382 is a CPMT09T308MF carbide indexable insert, grade SP4036, TiAlN coated.
Specifications
Ansi insert codeCCGT32.51
Ansi size code32.51
Chip breaker62
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1730
Included angle80
Industry standard numberVNGP3305
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3770
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Iso codeCPMT09T308MF
Iso insert codeCCGT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number5666382
Manufacturer gradeSP4036
Material gradeMicrograin
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeG
