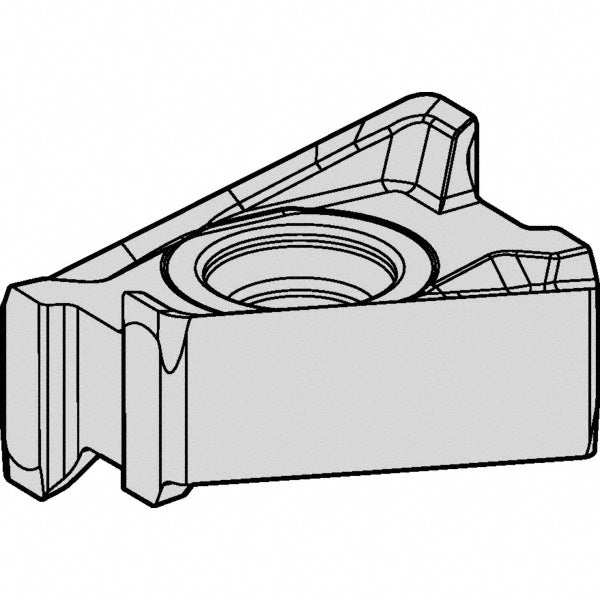

LNPU15T608SRGE Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5684657

Kennametal

LNPU15T608SRGE Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5684657

MFR# 5684657ISO/ANSI# LNPU15T608SRGECat# LNPU15T608SRGESeries LNPU

$30.25List $36.92 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5684657 is a LNPU15T608SRGE solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNPU542SRGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code54
Insert styleLNPU
Iso codeLNPU15T608SRGE
Length0.6650
Length range0.6500 to 0.7000
Manufacturers catalog numberLNPU15T608SRGE
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3940
