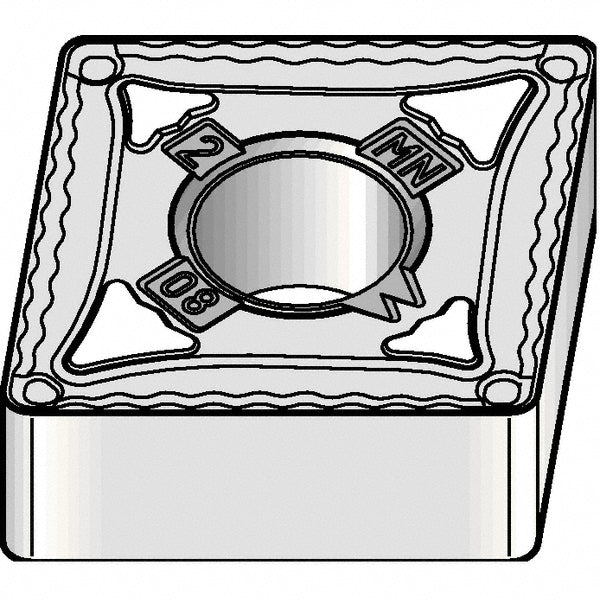

CNMG120408MN Carbide Insert, Grade KCPK05, TiCN - Kennametal 5685937
MFR# 5685937ISO/ANSI# CNMG120408Series KENLOC
$20.81List $25.41
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCPK05
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5685937 is a CNMG120408MN carbide indexable insert, grade KCPK05, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerMN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNMG432MN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408MN
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number5685937
Manufacturer gradeKCPK05
Material gradeP05; P15; K25; K35
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
