Kennametal
5/16-24 UNF HSS-E Spiral Point Tap, TiN - Kennametal 5689824
MFR# 5689824Series T672
$32.68List $41.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size5/16-24
CoatingTiN
Description

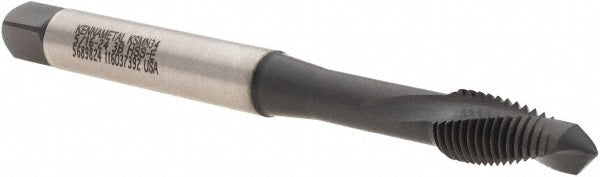

The Kennametal 5689824 is a 5/16-24 UNF HSS-E Spiral Point tap with a TiN finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationNon-Ferrous Metal
Material gradeKSMN34
Measurement typeDecimal Inch
Neck length0.7900
Number of flutes2
Overall length3.5400
OversizeNo
Shank diameter0.3180
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length in19/32
Thread limitH3
Thread pitch0.0417
Thread size in5/16-24
Thread standardUNF
